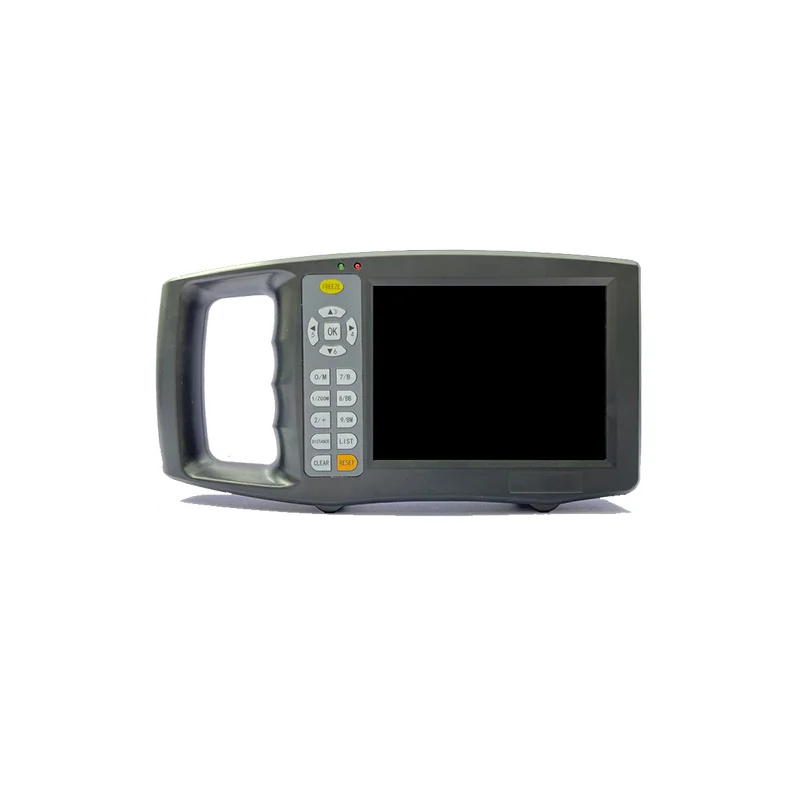

7000AV handheld ultrasound machine animal pregnancy test vet use
Features Of the Portable Veterinary Ultrasound
【 Portable Veterinary Ultrasound 】The vet portable ultrasound machine is small size, light weight and portable and handheld, you can take it anywhere conveniently.
【 Dustproof & Waterproof 】The portable veterinary ultrasound's rubber protector around the scanner against dirt , water and impact from the outside
【 Battery & AC Powered 】This vet portable ultrasound machine has both battery and AC powered, and the rechargeable battery can be removed easily
【 Free Your Hands 】Compact main body with should & waist belts, free your hands
【 Rectal Mechanical Probe 】You could make earlier, faster and more accurate diagnosis at the point of animal pregnancy with the mechanical probe at anytime, anywhere, no matter at animal hospital, even in or outdoor.
Details Of the Portable Veterinary Ultrasound
The portable veterinary ultrasound adopts technologies such as microcomputer control and digital scanning converter (DSC), large dynamic broadband low-noise preamplifier, logarithmic compression, dynamic filtration, edge enhancement etc. to ensure legible, stable and high resolution images.
Display modes: B, B+B, 4B, B+M, M
Gray scales : 256
Realize real time image display, frozen, zoom, store, up/down left/right reversal and Cine-loop. Multi-level scanning depth to choose, dynamic range, frame parameter adjust and focuses, focus location move. 16 body marks.
Comment : date & time, annotation, distance, circumference, area, volume.
USB 2.0 for real-time picture uploading to PC.
Power supply mode of built-in Li-ion chargeable battery of 11.1V, the power saving mode to enable more lasting battery operation.
Jet molding enclosure with hand-held structure makes it convenient for out diagnoses.
Standard Configuration: Main unit + CXA/50R/3.5MHz Convex Probe.
Options: 6.5MHz Rectal Probe, CXA20R/5.0MHz Micro-convex Probe.
Product details introduction
Scope of application
It is suitable for animal diagnosis such as pigs, horses, cattle, sheep, cats and dogs.
Vet Portable Ultrasound Machine Specifications
| Type | EC7000AV portable veterinary ultrasound | |||
| Probe | 6.5Mhz Linear Rectal Probe | 3.5Mhz Convex Probe | 5.0Mhzmicro-Convex Probe | |
| ScanningDepth(Mm) | ≥80 | ≥140 | ≥90 | |
| Resolution
(Mm) |
Lateral | ≤1(Depth ≤60) | ≤3(Depth ≤80)
≤5(80＜ Depth ≤130) |
≤3(Depth ≤60) |
| Axial | ≤1(Depth ≤80) | ≤1(Depth ≤80) | ≤1(Depth ≤60) | |
| BlindArea(Mm) | ≤3 | ≤6 | ≤5 | |
| Geometric
Position Precision(%) |
Horizontal | ≤5 | ≤7.5 | ≤7.5 |
| Vertical | ≤5 | ≤5 | ≤5 | |
| Monitor | 5.6InchTft-Lcd | |||
| Display Modes | B,B+B,B+M,M,4B | |||
| Gray Scales | 256 | |||
| Image Permanent Storage | 64 Frames | |||
| Cine-Loop | ≥400 Frames | |||
| Scanning Depth | 70mm-240mm | |||
| Image Conversion | Up/Down,Left/Right | |||
| Body Marks | 16 | |||
| Image Process | Faked Color,Gray Calibration,Image Smooth And Histogram. | |||
| Frequency Adjustment | 3 | |||
| Frame CorrelationAdjustment | Support | |||
| Measuring Functions | Distance,Circumference,Area,Volume,Ef Rate | |||
| Comment | Date & Time,Full Screen Character Editing | |||
| Output Connector | Usb2.0 | |||
| Time To Empty | >3 Hour | |||
| Battery Capacity | 3000mah | |||
Standard Configuration
Main Unit
Battery
CXA/50R/3.5MHz Convex Probe
Adapter
Power Connection
User’s Manual
Inspection Report
Warranty Card
Optional Configuration
6.5MHz Linear Rectal Probe
CXA20R/5.0MHz Micro-Convex Probe
Prodcut Show
FAQ About the Portable Veterinary Ultrasound
Can you use portable veterinary ultrasound on humans?
Answer:
No, it is not for humans,it is only for animals,such as dog,cat,goat etc. Eaceni is a portable veterinary ultrasound producer,you can trust us!
Will it work on Rabbits
Answer:
Sorry, it couldn't, this animal pregnancy test machine only can work on large animal, like horse, sheep and pig camel cat dog cow and so on. Custom selections possible.
Can I print the image?
Answer:
Yes, Dear friend,You can only print images via a video printer, you can check them anytime on this portable veterinary ultrasound screen.
